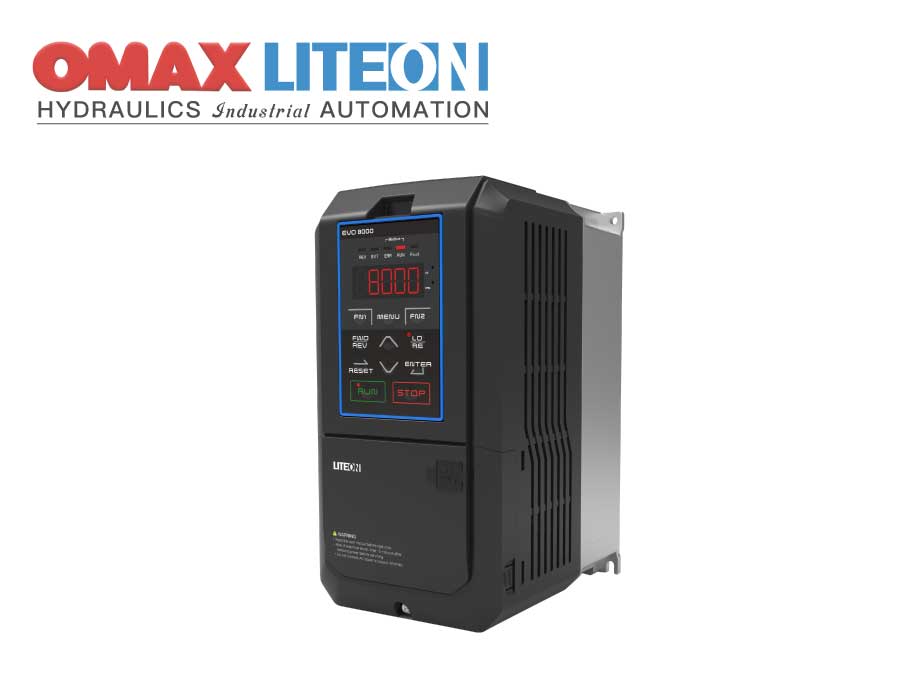

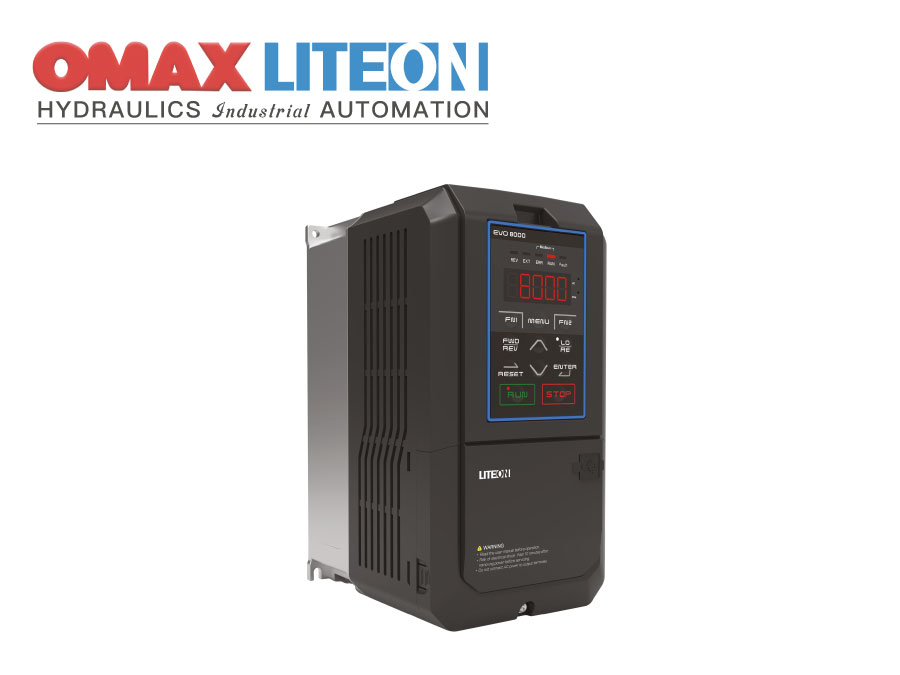

EVO8000 Premium Vector VFD
400V: 3 Phase 380-480V
0.75KW ~ 110KW / 1HP ~ 150HP
Global Certification: RoHS, CE/UL/cUL
Protection Level: IP20 / IP21 (NEMA1 kit optional)
Control Mode: V/F, V/F+PG, Closed-loop/open-loop current vector control for asynchronous/synchronous motor.
Features:

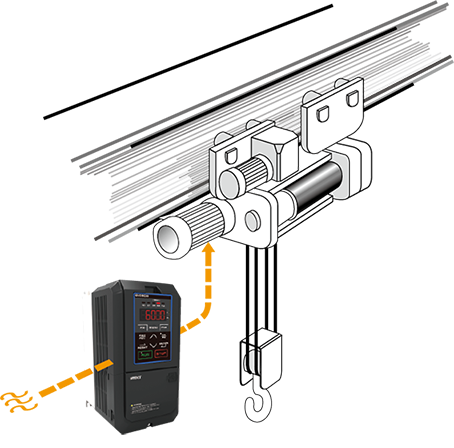

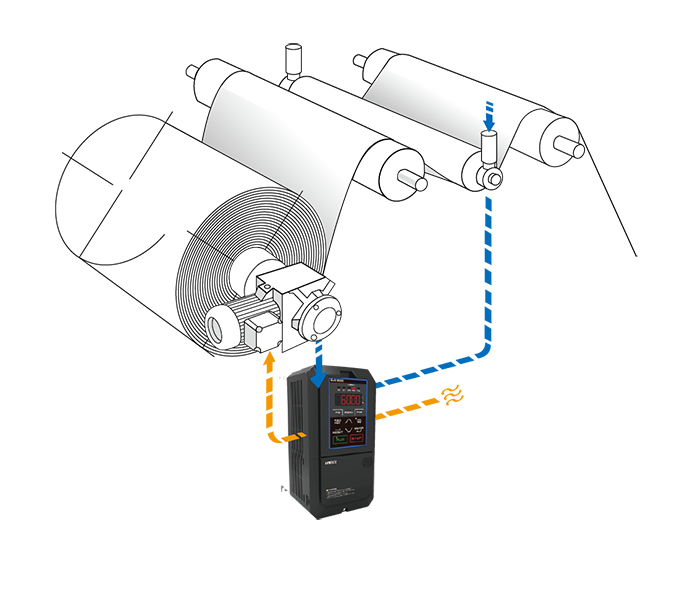

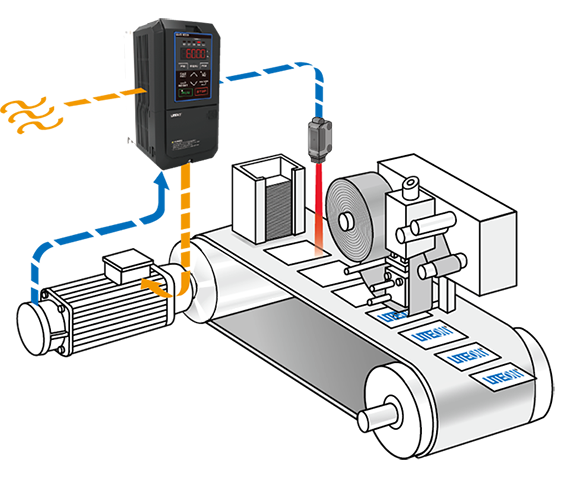

Outstanding Overload Capacity, Support IM/PM Motor, Steady Speed Operation, Kinetic Energy Braking, Power Stop, Support Various Industrial Communication, Design for All Type of Advanced Application, Tension Control is Not Impossible, Support Synchronous Motor, Outstanding Control Performance Avoid the Low Speed Tremble, Power Functionality, Optimized Environmental Immunity.
Applications:
Lathes, Hoists, Lifts, Gantries, Wire Drawing Machine, Press Machine, Extractor, Extruder, Injecting Machine, Dyeing and Finishing Machine, Printing Machine, Winding Machine, Machine Tool, Compressor, Packing Machine, Bagging Machine, Labelling Machine, Mixer, Kneader, Cutter, Winder, Material Handling, Robotic Arm, Lifting Machine, Textile Machine, Traditional Industries Related Machineries.
Premium Current Variable Frequency Drive
PREMIUM AC DRIVE INVERTER
Features
Outstanding Overload Capacity
200% start toeque at 0Hz, support heavy load with stability.
200% overload capacity up to 3 seconds
Support IM/IM Motor

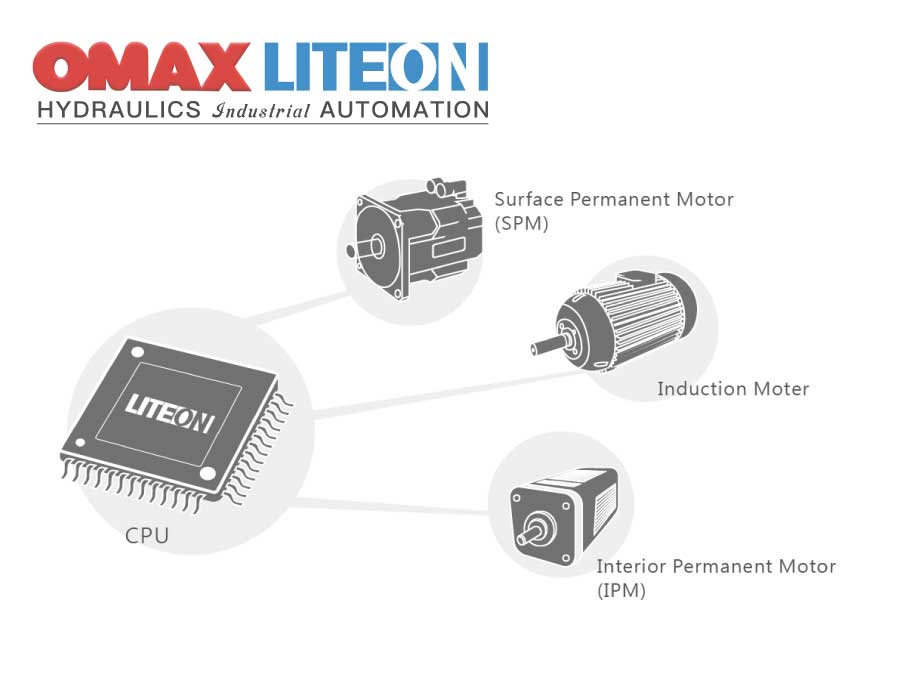

As a high-performance product, EVO8000 series support not only IM motor and PM motor.
Whether IM or PM motor both support close loop FOC, open loop control.
Support speed control, torque control and position control.
Steady Speed Operation
Speed impact load response speed.
Fast reaction for load varies to adjust output in real application to remain the equipment remain steady.
Power Stop
Support softward adjust via USB port.
Adjust, monitoring and copy data via LITEON studio.
General Specifications
Control Characteristic
Control Method: V/F Control, V/F Control with PG, IM/PM with PG Current Vector Control, IM/PM FOC, IM SVVC, IM/PM with PG Torque Control, IM/PM Position Control - Pulse Sync
Output Frequency: 0~400Hz
Frequency Accuracy: Digital reference within ±0.01% of the maximum output frequency. Analog reference within ±0.1% of maximum output frequency.
Frequency Setting Resolution: Digital input 0.01Hz. Analog output 1/1000 of maximum frequency.
Starting Torque: 150%/1.5Hz (V/F and V/F with PG), 200%/0.5Hz (IM Sensorless Current Vector Control FOC/SVVC), 200%/0Hz (IM/PM Current Vector Control with PG), 100%/5% (PM Sensorless Current Vector Control)
Speed Control Range: 1:40 (V/F and V/F with PG), 1:120/200 (IM Sensorless Current Vector Control), 1:20 (PM Sensorless Current Vector Control), 1:1500 (IM/PM Current Vector Control with PG)
Speed Control Accuracy: ±0.2% (Sensorless Current Vector Control), ±0.02% (Current Vector Control with PG)
Acc./Dec. Time: 0.0~6000.0 sec
Speed Response: 10Hz in Sensorless Current Vector Control, 50Hz in Current Vector Control
Position Accuracy: In no-load operations, with 1024 ppr encoder, the position control error is ±1 pulse.
Braking Torque: Approx. 20%
EMC Specifications: Option C2 (power < 20kVA), C3 (power > 20kVA)
V/F Pattern: 15 fixed and 1 programmable
Overload Capacity: 150% for 1 min. within every 10 min. / 200% for 3 sec. within every 10 min.
Parameter Functions: Torque Control, Speed/Torque Control Switching, Feed Forward Control, Zero Speed Holding, Momentary Power Restart, Speed Search, Overtorque/Undertorque Detection, Torque Limit, Multi-Step Speed, Acc./Dec. Switch, S-Curve Acc./Dec., 3-Wire Sequence Control, Auto-Tuning, Cooling Fan On/Off Switch, Slip Compensation, Torque Compensation, Frequency Jump, Upper/Lower Limits for Frequency Command, DC Braking at Run/Stop, PID Control including Pause Function, Fault Reset, Kinetic Energy Braking, Auto Voltage Adjustment, Overvoltage Suppression, Traverse, etc.
Operating Environment
Area of Use: Indoor without corrosive gas/liquid of flammable gas/liquid/oil mist/dust
Ambient Temperature: -10ºC~+50ºC, -10ºC~+40ºC (NEMA type 1), below 95% RH without froze or condensation
Storage Temperature: -20ºC~+60ºC
Altitude: Up to 1000 meters
Vibration: Below 9.8m/s2 (10~20Hz), below 5.9m/s2 (20~55Hz)
Enclosure: IP20, NEMA1 (with NEMA kit option)
Number of I/O
Analog Input (AI): 2 points (A1: 0~10V, -10~10V / A2: 0 or 4~20mA, 0~10V, 0~5V)
Digital Input (DI): 8 points
Analog Output (AO): 2 points (FM: 0~10V, -10~10V / A2: 0 or 4~20mA, 0~10V, 0~5V)
Digital Output (DO): 2 points
Relay Output (RO): 2 points
Pulse Input (PI): 1 point
Pulse Output (PO): 1 point
Build-In: Modbus (RS-485), USB port
Option: EtherCAT
