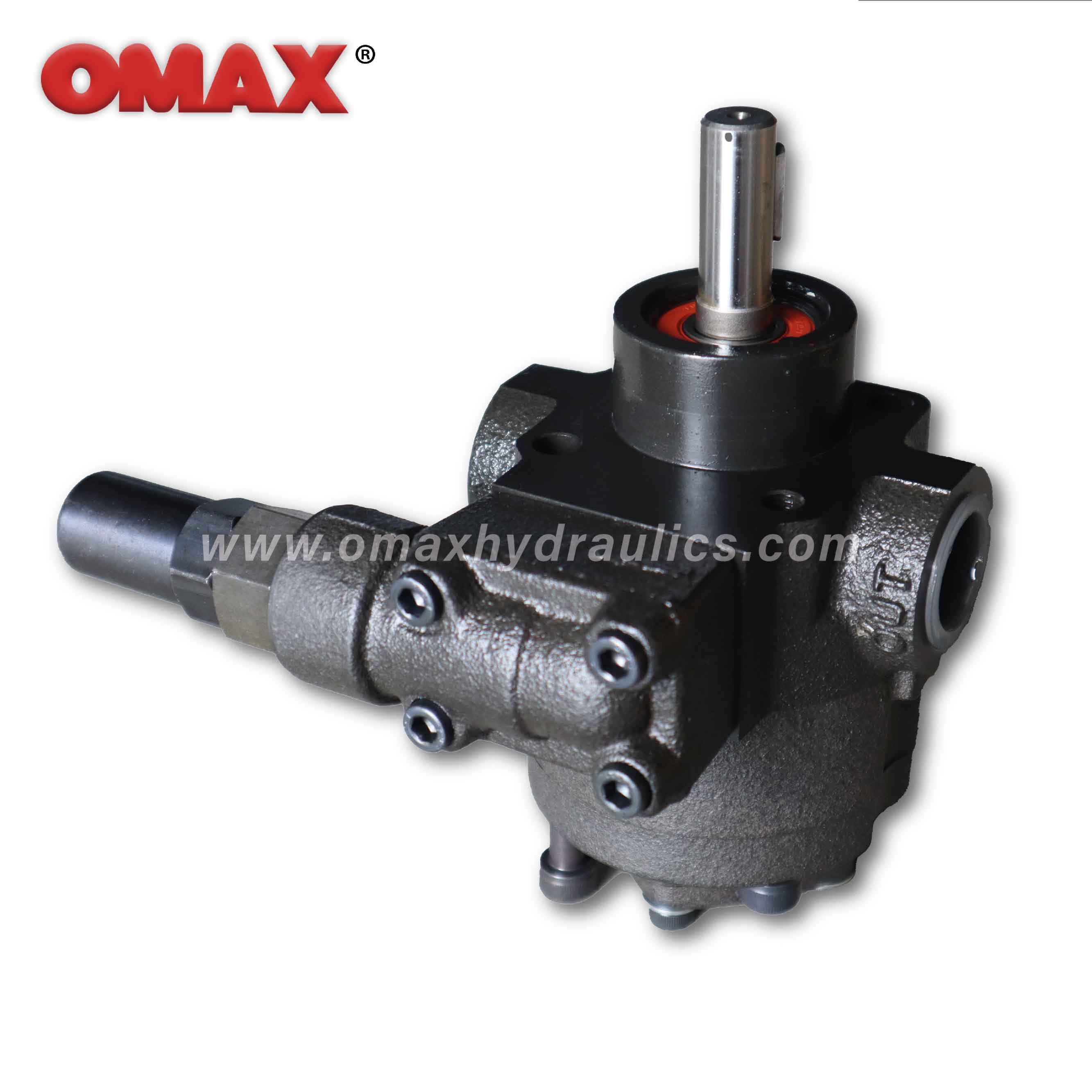

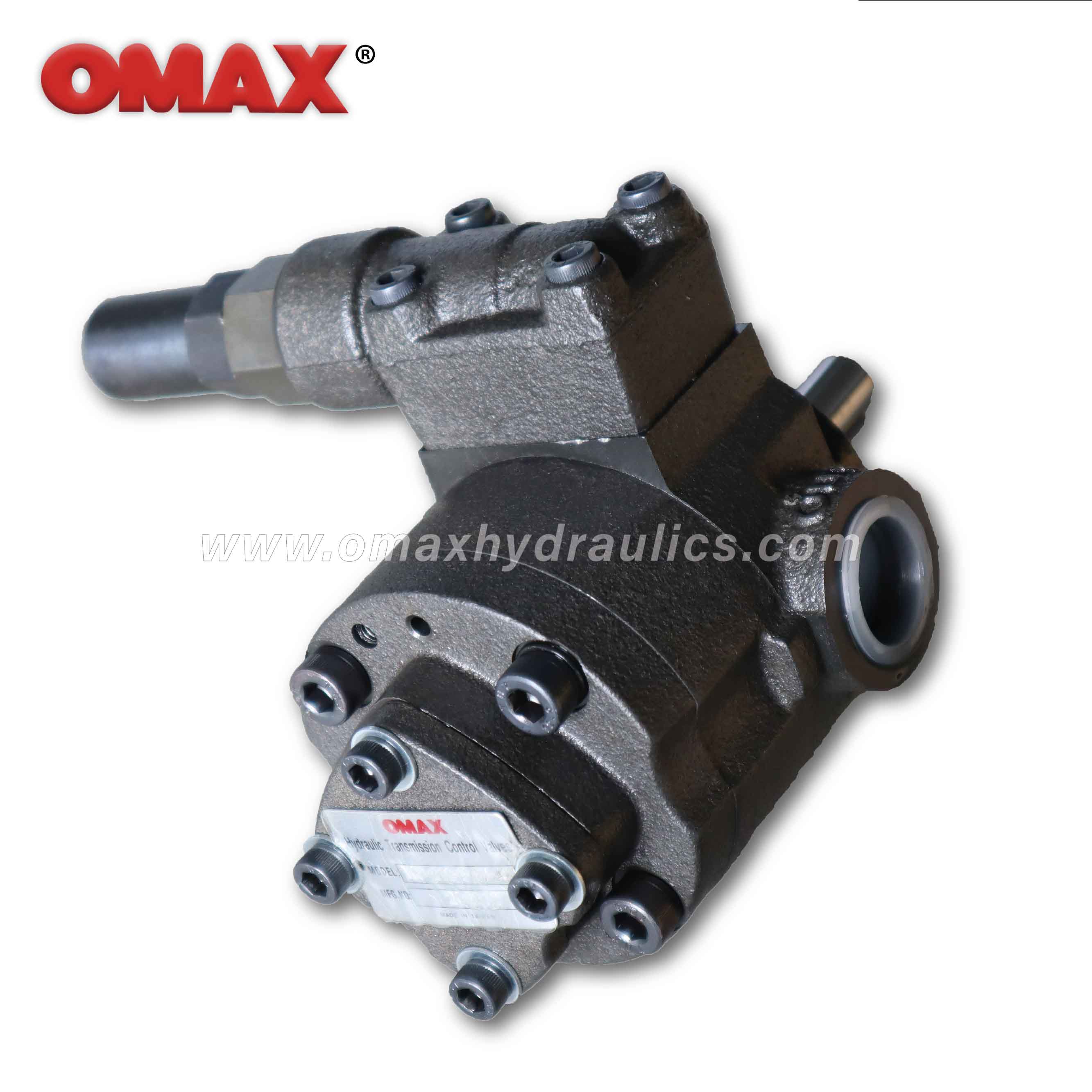

VOP Lubrication Pump - OMAX Hydraulics Industrial

> Compact size, low noise, easy installation.
> Suitable for high-viscosity oil.
> Suitable for machine lubrication systems, filtering systems, and cooling systems.

Contact

Back

specification

add to Inquiry Cart	Model	Displacement (c.c./rev.)	Displacement (1500rpm)	Displacement (1800rpm)	Max. Pressure (kg/cm2)	Max. Speed (rpm)	In/Out
add to Inquiry Cart	Model	Displacement (c.c./rev.)	Displacement (1500rpm)	Displacement (1800rpm)	Max. Pressure (kg/cm2)	Max. Speed (rpm)	In/Out	VOP-203	3	4.5	5.4	25	1800	PT 1/2"
	VOP-204	4	6.0	7.2	25	1800	PT 1/2"
	VOP-206	6	9.0	10.8	25	1800	PT 1/2"
	VOP-208	8	12.0	14.4	25	1800	PT 1/2"
	VOP-210	10	15.0	18.0	25	1800	PT 3/4"
	VOP-212	12	18.0	21.6	20	1800	PT 3/4"
	VOP-216	16	24.0	28.8	20	1500	PT 3/4"
	VOP-220	20	30.0	36.0	15	1500	PT 3/4"
