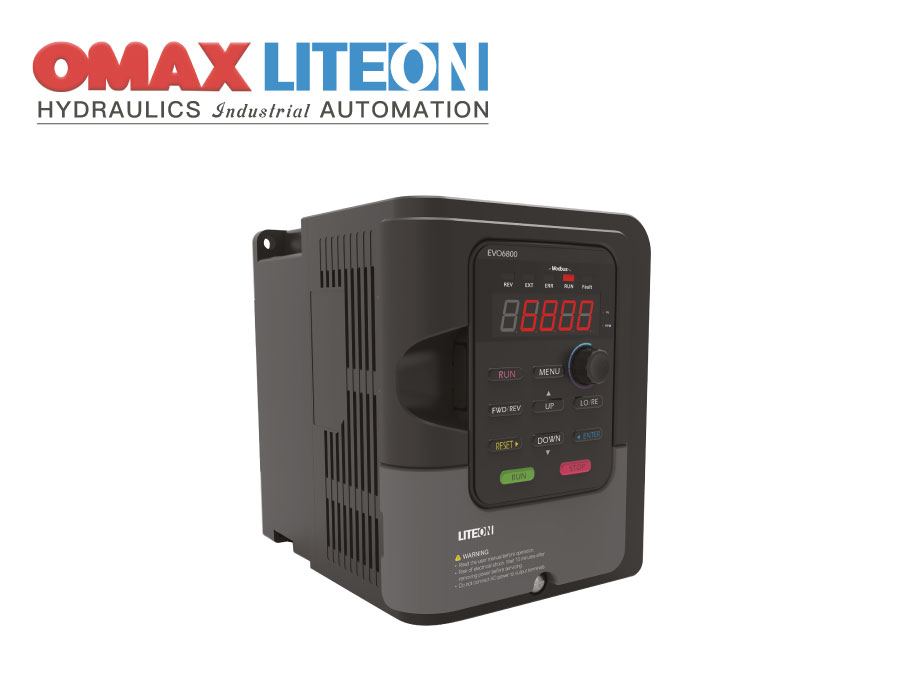

Compact Vector VFD (EVO6800)

EVO6800 Compact Vector VFD
200V: 3 Phase 200-240V
400V: 3 Phase 380-480V
0.4KW~110KW / 0.5HP~150HP

Global Certification: RoHS, CE/UL/cUL
Protection Level: IP20
Control Mode: V/F, Sensorless Voltage Vector Control (SVVC)

Advanced Overload Performance, Support Light/Heavy Load Dual Mode, Power Recycle Function, Scheduled Auto Running, Globalize.

Belt Coal Feeder, Drag-type Feeder, Air Compressor, Fuel Pump, Ceramic Machinery, Pulverized Fuel Feeder, Plastic Machine, Media Machine, Weaving Machine, Grinding Machine, Water Pump, Machine Tool, Press, Conveyor, Packing Machine, Bagging Machine, Labelling Machine, Textile Machine, Traditional Industries Related Machineries.

add to Inquiry Cart Model Input Voltage Power Rating (HD) Power Rating (ND)


200V Three Phase 0.4KW / 0.5HP 0.75KW / 1HP


200V Three Phase 0.75KW / 1HP 1.5KW / 2HP


200V Three Phase 1.5KW / 2HP 2.2KW / 3HP


200V Three Phase 2.2KW / 3HP 3.7KW / 5HP


200V Three Phase 3.7KW / 5HP 5.5KW / 7.5HP


200V Three Phase 5.5KW / 7.5HP 7.5KW / 10HP


200V Three Phase 7.5KW / 10HP 11KW / 15HP


200V Three Phase 11KW / 15HP 15KW / 20HP


200V Three Phase 15KW / 20HP 18.5KW / 25HP


400V Three Phase 0.4KW / 0.5HP 0.75KW / 1HP


400V Three Phase 0.75KW / 1HP 1.5KW / 2HP


400V Three Phase 1.5KW / 2HP 2.2KW / 3HP


400V Three Phase 2.2KW / 3HP 3.7KW / 5HP


400V Three Phase 3.7KW / 5HP 5.5KW / 7.5HP


400V Three Phase 5.5KW / 7.5HP 7.5KW / 10HP


400V Three Phase 7.5KW / 10HP 11KW / 15HP


400V Three Phase 11KW / 15HP 15KW / 20HP


400V Three Phase 15KW / 20HP 18.5KW / 25HP


400V Three Phase 18.5KW / 25HP 22KW / 30HP


400V Three Phase 22KW / 30HP 30KW / 40HP


400V Three Phase 30KW / 40HP 37KW / 50HP


400V Three Phase 37KW / 50HP 45KW / 60HP


400V Three Phase 45KW / 60HP 55KW / 75HP


400V Three Phase 55KW / 75HP 75KW / 100HP


400V Three Phase 75KW / 100HP 90KW / 125HP


400V Three Phase 90KW / 125HP 110KW / 150HP


400V Three Phase 110KW / 150HP 132KW / 175HP

Compact Vector Variable Frequency Drive



Advanced Overload Performance


200% overload capacity.


Support heavy load environment and runs steady.



Support Light/Heavy Load Dual Mode


Support 120%/60s light load mode and 150%/60s heavy load mode.


Longer product life span.Light load mode will be able to apply to fan control, water pump and etc.


Heavy load may apply to conveyer belt, horizontal movement and etc.



Power Recycle Function


If power cut certainly happened, the power recycle function will use the power produced by brake and keep the energy till power back on.


Operating temperature -10ºC~50ºC without derating.



Scheduled Auto Running


Client just need to set up the running schedule and the VFD will run automatically.


Just need to provide the running signal, EVO6800 won't need host side to provide the signal.





Reliable Control


Accurate speed control at 1:40 (V/F) and 1:100 (SVVC). Starting torque at low speed 3Hz 150% (V/F), 1Hz 150% (SVVC).





Kinetic Energy Braking


When the power shuts down, the regeneration from motor braking is utilized to keep the AC drive powered until power supply recovers.





Increase Efficiency with Less Cost


Derated torque significantly reduces your energy bills for applications such as fans and pumps. This saves as much as 88% of energy when running at half of the rated speed.




Product Performance


Voltage Level: 3AC 200~240V, 3AC 380~480V

Performance Range: 3AC 200V 0.4~15KW, 3AC 400V 0.4~110KW

Control Mode: V/F, SVVC

Voltage Range: -15%~10%

Start Torque: V/F 150% 1.5Hz; SVVC 150% 0.5Hz

Certification: CE, UL, cUL

Protection Level: IP20

Easy Operation: 5 digits with 7 level display, control panel with knob

Working Temperature: -10ºC to 50ºC without deration

General Specifications


Control Characteristic

Control Method: V/F, SVVC

Output Frequency: 0~400Hz

Frequency Accuracy: Digital reference within ±0.01% of the maximum output frequency. Analog reference within ±0.1% of maximum output frequency.

Frequency Setting Resolution: Digital input 0.01Hz. Analog output 1/1000 of maximum frequency.

Starting Torque: 150% 1.5Hz (V/F), 150% 0.5Hz (IM SVVC)

Speed Control Range: (V/F) 1:40, (SVVC) 1:120

Speed Control Accuracy: ±3% in SVVC

Acc./Dec. Time: 0.0~6000.0 sec

Speed Response: Approx. 20%

EMC Specifications: Option C2 (power < 20kVA), C3 (power > 20kVA)

V/F Pattern: 15 fixed and 1 programmable

Overload Capacity: Normal load - 120% for 1 min. within every 10 min. Heavy load - 150% for 1 min. within every 10 min. Heavy load - 180% for 3 sec. within every 10 min. Heavy load - 200% for 1 sec. within every 10 min.

Parameter Functions: Power Restart, Speed Search, Overtorque/Undertorque Detection, Multi-Step Speed, Acc./Dec. Switch, S-Curve Acc./Dec., 3-Wire Sequence Control, Auto-Tuning, Cooling Fan On-Off Switch, Slip Compensation, Torque Compensation, Frequency Jump, Upper/Lower Limits for Frequency Command, DC Braking at Run/Stop, PID Control including Pause Function, Fault Reset, Kinetic Energy Braking, Auto Voltage Adjustment, Wobble, Traverse, etc.


Operating Environment

Area of Use: Indoor without corrosive gas/liquid of flammable gas/liquid/oil mist/dust

Ambient Temperature: -10ºC~+50ºC, -10ºC~+40ºC (NEMA type 1), below 95% RH without froze or condensation

Storage Temperature: -20ºC~+60ºC

Altitude: Up to 1000 meters

Vibration: Below 9.8m/s2 (10~20Hz), below 5.9m/s2 (20~55Hz)

Enclosure: IP20


Number of I/O F1-F2

Analog Input (AI): 1 point (A2 0V~10V, 0 or 4~20mA)

Digital Input (DI): 4 points

Analog Output (AO): 1 point (AM 0~10V, 0 or 4~20mA)

Digital Output (DO): 1 point

Relay Output (RO): 1 point


Number of I/O F3-F7

Analog Input (AI): 2 points (A1: 0~10V, -10~10V / A2: 0 or 4~20mA, 0~10V, 0~5V)

Digital Input (DI): 7 points

Analog Output (AO): 2 points (FM: 0~10V, -10~10V / AM: 0 or 4~20mA, 0~10V)

Digital Output (DO): 1 point

Relay Output (RO): 2 points

Pulse Input (PI): 1 point (1 common digital input point)

Pulse Output (PO): 1 point


Communications: Modbus (RS-485), communication at maximum speed 115200bps
