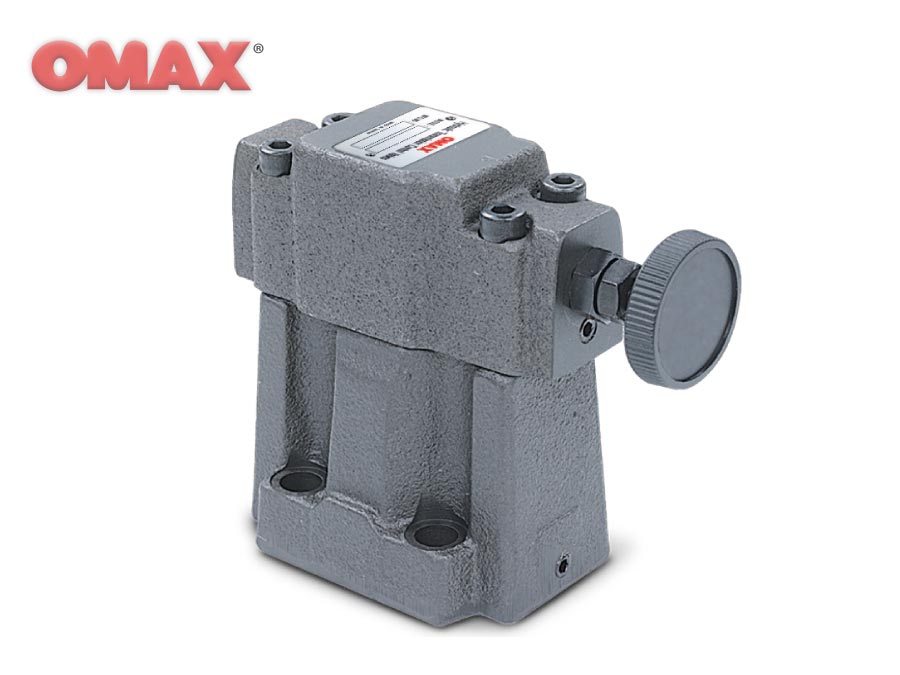

Low Noise Type (SBR)

Designed with low noise.

*Pressure Handle Position:
R: Handle is facing to the pressure port (standard, no remarked)
L: Handle is facing to the tank port

Contact
Back
add to Inquiry Cart Model Valve Size Mounting Type Pressure Adjusting Range Pressure Handle Position

SBR-03G

 3/8" SUB - Plate Mounting 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 R / L 100 L/min

SBR-06G

 3/4" SUB - Plate Mounting 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 R / L 200 L/min

SBR-10G

 1-1/4" SUB - Plate Mounting 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 R / L 400 L/min
