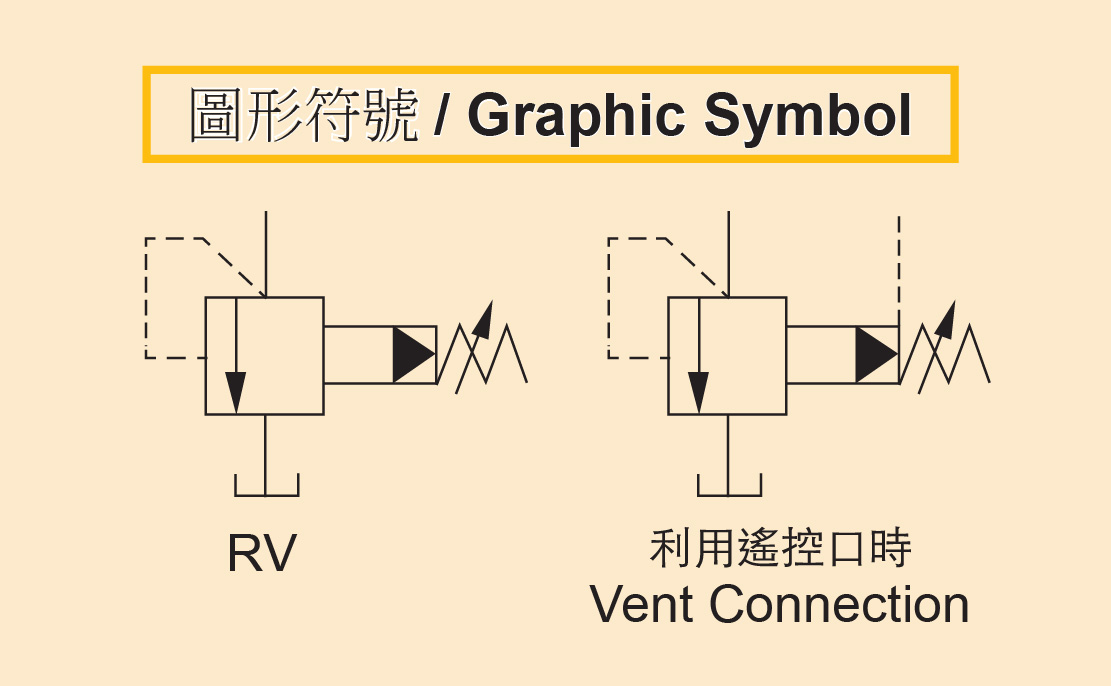

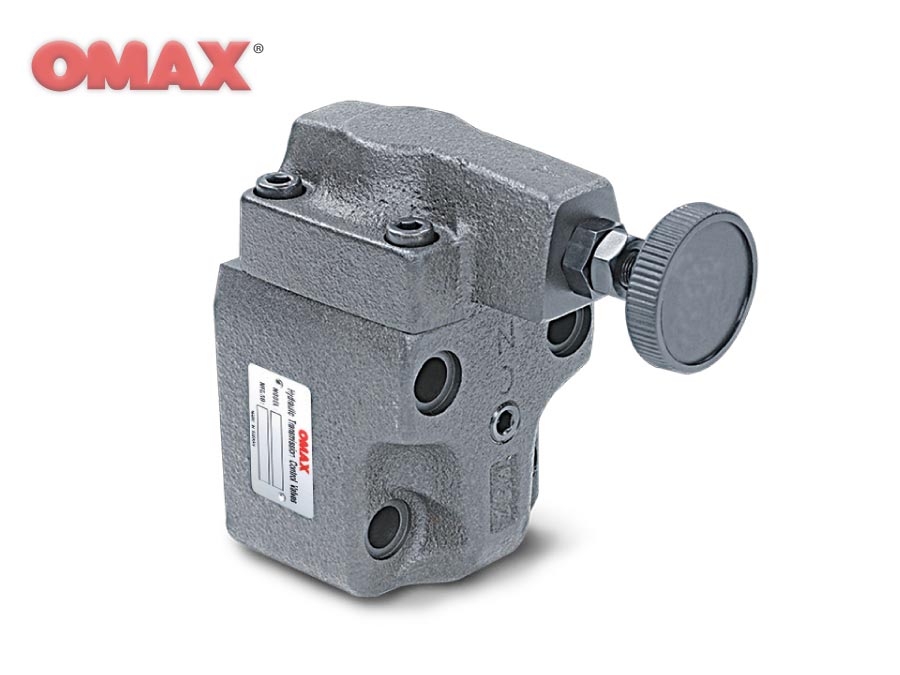

Pilot Relief Valve (RV-G)

Designed for pilot.

The features include low noise stabling the system pressure, and also suitable for remote control and unloading.

*RV-BK is linked type remote control relief valve for low back pressure using.

Contact
Back
add to Inquiry Cart Model Valve Size Mounting Type Pressure Adjusting Range Type Max. Flow

RV-03G

 3/8" SUB - Plate Mounting 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 100 L/min

RV-06G

 3/4" SUB - Plate Mounting 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 200 L/min

RV-10G

 1-1/4" SUB - Plate Mounting 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 400 L/min
