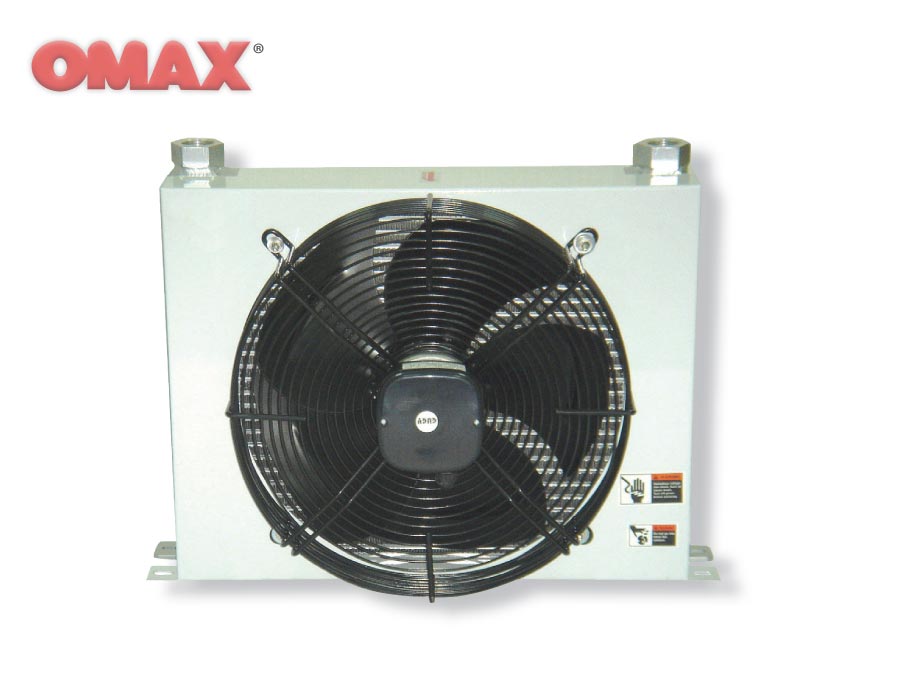

Heat Exchanger (AH1215)

＊ ECO Heat-Exchanger
＊ Material : Aluminum Alloy
＊ Thematerial and the grade are same as the European Brand.

＊ The fans and the motors of OMAX, are beyond the normal industrial standard, because the coolers would be working in high-temperature environment.
＊ Class H insulation consists of materials, maximum hot spot temperature allowed 180°C.
＊ Coil number of turns are 15% more than standard, could work on 50Hz.
＊ Small size motors equipped with power-off system, to prevent the fire from happening.
＊ DC motors, Ingress Protection Rating IP68, Life time 20,000 hours. (Optional)

＊ Best way to use: "Hydraulic Presses Kidney Loop", "Off-line Recirculation Cooling"

Contact
Back
add to Inquiry Cart Model Standard Voltage (V) Frequency (Hz) Power (W) Current (A) Rotation Speed (R.P.M.) Air Flow (m3/h) IP Level Noise (dB(A))

AH1215-CA2

 3Ø / 230V 50 / 60 130 0.38 / 0.4 2420 / 2510 1800 / 1900 54 60

AH1215-CA3

 3Ø / 400V 50 / 60 130 0.22 / 0.23 2420 / 2510 1800 / 1900 54 60

AH1215-CD1

 DC12 - 192 16 2000 2000 68 65

AH1215-CD2

 DC24 - 192 8 2400 2000 68 65
